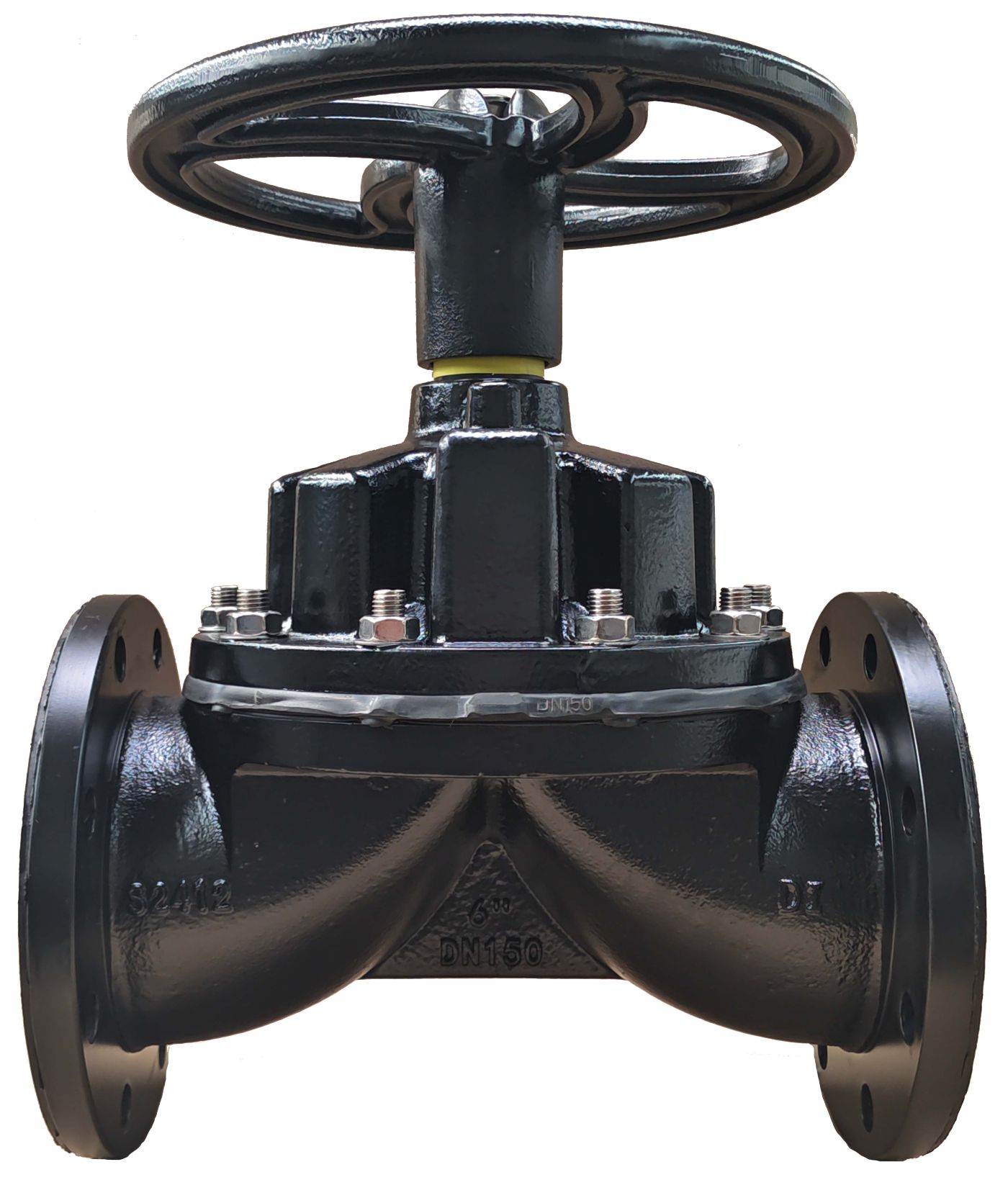

The Straight Type Diaphragm Valve by CNM Valve is engineered to provide precise and reliable control over fluid flow, ensuring exceptional performance in various industrial applications. Known for its durability, corrosion resistance, and ease of maintenance, this valve type is ideal for handling fluids in harsh environments, including chemicals, pharmaceuticals, and water treatment systems.
Size :
DN15 – DN300 (1/2" to 12")End Connections :
Flanged, Threaded, or WeldedMaterial :
Cast Iron, Stainless Steel, PVC, and moreTemperature Range :
-10°C to 120°CPressure Rating :
From 1.75 to 10 BarSuitable Medium :
Water, oil, acids, slurry, air....Operation :
Manual, Pneumatic, or ElectricProduct Features:
Reliable Flow Control: Designed to provide precise regulation of fluids, the Straight Type Diaphragm Valve ensures optimal performance and operational safety.
Durability: Made with high-quality materials that are resistant to wear and corrosion, these valves offer a long lifespan, reducing the frequency of replacements.
Leak-proof Performance: Equipped with a flexible diaphragm, the valve prevents leakage even in high-pressure and demanding conditions.
Easy Maintenance: The diaphragm can be quickly replaced or serviced without needing to dismantle the entire valve, making maintenance straightforward and cost-effective.
Versatility: Suitable for a wide range of applications, including water treatment, chemical processing, food & beverage, and pharmaceutical industries.
Corrosion-resistant Materials: Built with high-performance materials, the CNM Straight Type Diaphragm Valve resists corrosion from harsh chemicals and fluids.
Applications:
Chemical Processing: Ideal for controlling aggressive chemicals without the risk of leakage.
Water Treatment: Used for controlling water flow in both potable and wastewater applications.
Pharmaceuticals: Ensures clean, sterile fluid handling with minimal contamination risk.
Food & Beverage: Meets hygiene and safety standards, making it perfect for use in food processing and beverage production.
Advantages:
High Efficiency: The diaphragm valve’s design minimizes pressure loss, allowing for efficient fluid management.
Compact Design: The straight-through flow path minimizes turbulence, ensuring smooth operation.
Environmentally Friendly: Reduces the potential for leaks, preventing spills and environmental contamination.
Low Maintenance Costs: Its robust design and easy servicing significantly lower maintenance expenses.
Design and Construction:
The Straight Type Diaphragm Valve is constructed with a smooth, straight-through flow path to allow for minimal flow resistance. The valve body is designed to withstand high pressures and temperatures, and it features a flexible diaphragm that forms a tight seal against the valve body to prevent leakage.
Advantage and benifits :
Low initial cost.
Simple design and low manufacturing complexity provide your application with a low cost, low maintenance, high performance solution.
Superior performance.
“Bubble-tight” shutoff. Individually tested to provide a total seal to ANSI Class VI Standards.
Trouble-free operation.
A bonnet design, free of packing and glands, removes the need for periodic adjustment and replacement.
Excellent throttling characteristics.
Reliable flow regulation between 15% to 85% of rated capacity.
Easy maintenance.
Diaphragm replacement can be performed with the valve “in-line” - reducing plant downtime and maintenance costs.
Clean Design.
The body contains no internal cavities or crevices that can trap fluids.

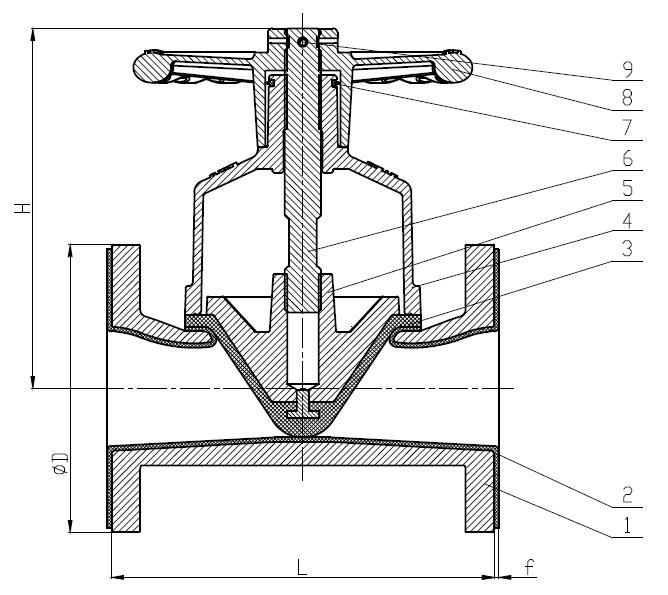

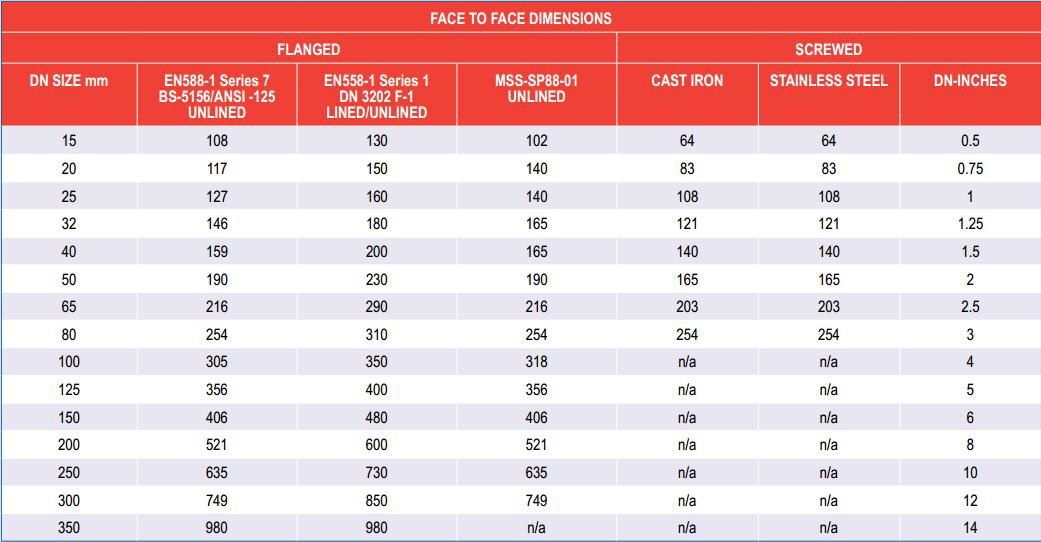

Details
| 9 | Spring pin | 1 | 45# |
| 8 | Hand wheel | 1 | Ductile Iron |
| 7 | Flap seal | 1 | EPDM |
| 6 | Spindle | 1 | SS304 |
| 5 | Compressor | 1 | Ductile Iron |
| 4 | Bonnet | 1 | Ductile Iron |
| 3 | Diaphragm | 1 | EPDM |
| 2 | Lining rubber | 1 | Soft natural rubber |
| 1 | Body | 1 | Ductile Iron |
| No. | Name | Qty. | Material |
