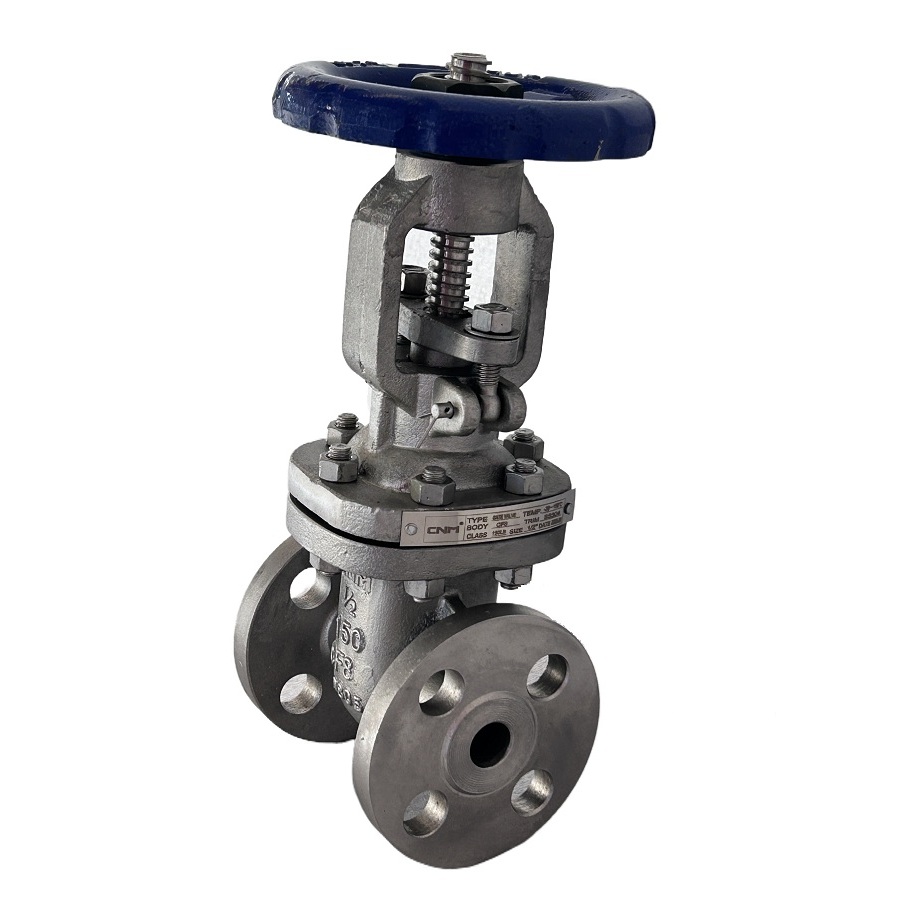

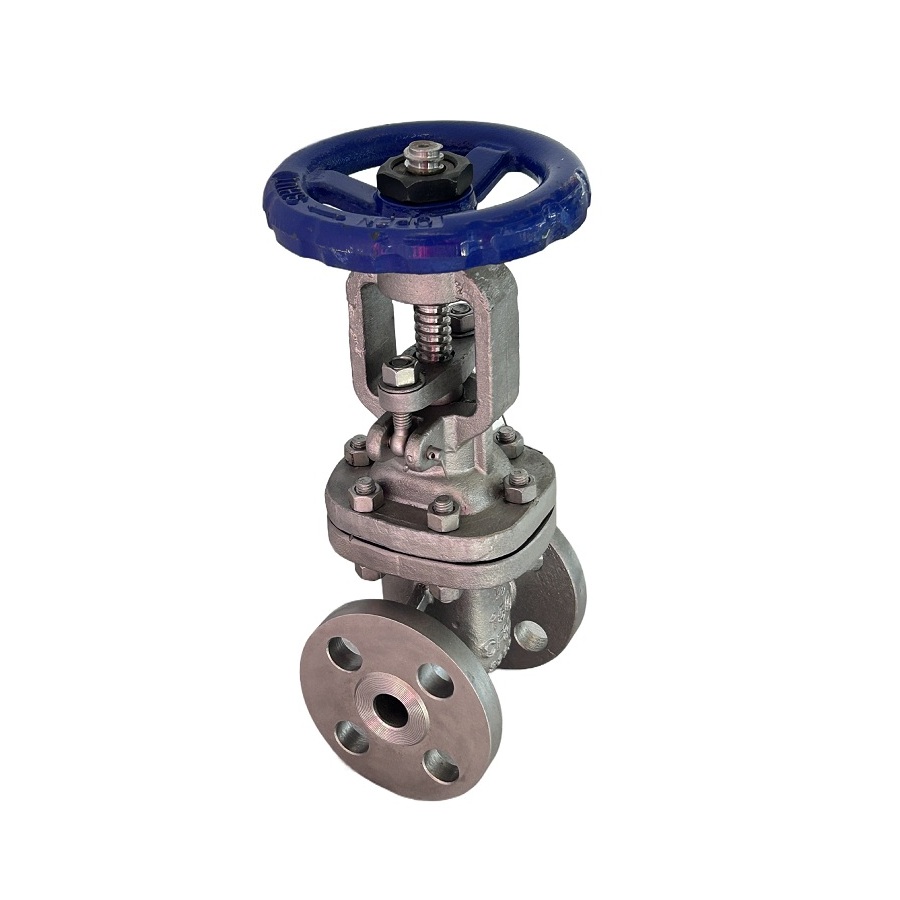

Stainless Steel Flanged Gate Valve Class 150, 300

Our Stainless Steel Flanged Gate Valve is available in both Class 150 and Class 300 pressure ratings, ensuring flexibility for different pressure environments. With a flanged connection for secure installation and a stainless steel body, it ensures corrosion resistance and longevity, providing a cost-effective and durable solution for your valve needs.

Size :
From 2" to 24"
End Connections :
Flanged
Material :
Stainless Steel (SS304, SS316 options)
Temperature Range :
-20°C to +400°C
Pressure Rating :
From 150LBS to 300LBS
Design Standards :
API 600
Suitable Medium :
Oil，Gas，Water
Operation :
Handwheel operated, Gearbox (Optional), or Actuated for automation.

Inquire Now

Key Features:

Material: High-quality Stainless Steel construction for enhanced corrosion resistance and durability.

Design Standard: Meets international design standards for gate valves, ensuring safety and reliability.

Pressure Class: Available in Class 150 and Class 300, suitable for various pressure conditions.

Flanged Connection: Provides easy and secure installation, minimizing leakage risks.

Operation: Non-rising stem design for smooth operation in limited space environments.

Application: Perfect for on/off services in pipelines, industrial process control, and fluid isolation systems.

Applications:

1. Oil & Gas Industry: Ideal for controlling the flow of crude oil and gas with secure isolation.

2. Water Treatment: Suitable for flow control in water pipelines and treatment plants.

3. Petrochemical Industry: Reliable for harsh chemicals and fluids in refineries.

4. Power Generation: Durable under high pressure and temperature environments in power plants.

Dimension of Gate Valve 10k:

NPS-DN		Typical Demensions				Class 150Lb Flange Dimensions
ln	mm	d	L	H	W	D	D1	D2	b	f	z-Φd
2	50	50	178	360	200	152	120.5	92	16	1.6	4-19
2.5	65	63	191	395	220	178	139.7	105	18	1.6	4-19
3	80	76	203	435	250	191	152.4	127	19.5	1.6	4-19
4	100	100	229	522	280	229	190.5	157	24	1.6	8-19
5	125	127	254	570	300	254	215.9	186	24	1.6	8-22
6	150	150	267	610	350	279	241.3	216	25.5	1.6	8-22
8	200	200	292	950	350	343	298.5	270	29	1.6	8-22

NPS-DN		Typical Demensions				Class 150Lb Flange Dimensions
ln	mm	d	L	H	W	D	D1	D2	b	f	z-Φd
10	250	250	330	935	400	406	362	324	30.5	1.6	12-25
12	300	300	356	1065	500	483	431.8	381	32	1.6	12-25
14	350	336	381	1220	600	533	476.3	413	35	1.6	12-28
16	400	387	406	1065	600	597	539.8	470	37	1.6	16-28
18	450	438	432	1345	650	635	577.9	533	40	1.6	16-32
20	500	488	457	1480	750	699	635.0	584	43	1.6	20-32
24	600	590	508	1065	920	813	749.3	692	48	1.6	20-35

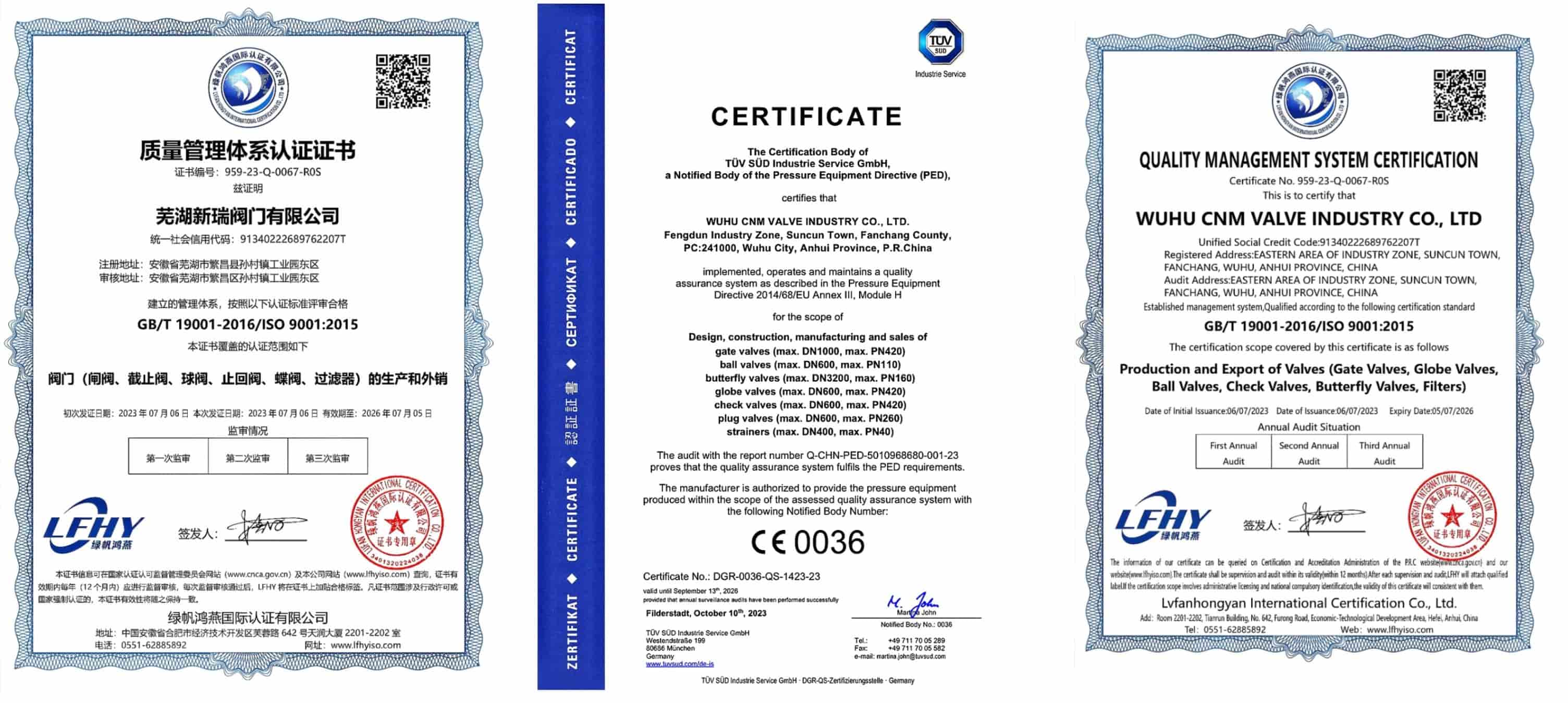

Certificate:

JIS/KS Stainless Steel Gate Valve

Why choose CNM VALVE?

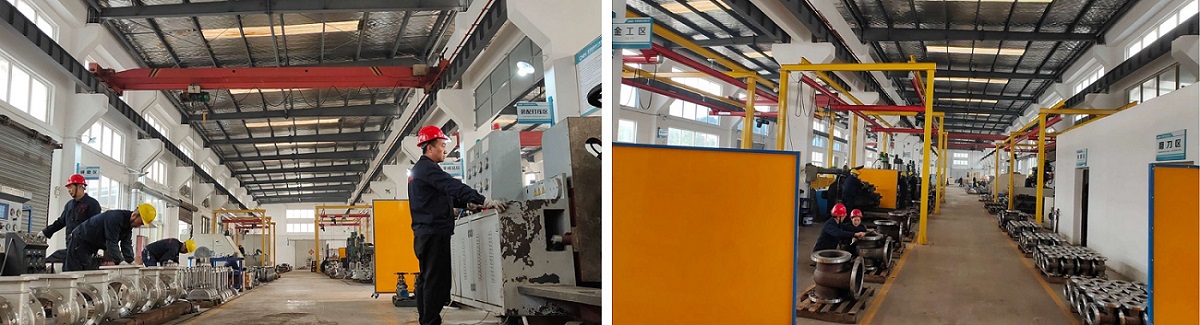

Expert Manufacturing: With years of experience, CNM Valve offers top-tier engineering in stainless steel gate valve production.

Global Standard Compliance: Every valve adheres to international standards, ensuring maximum safety and performance.

CNM VALVE offers fast delivery and customization services to meet specific project requirements and timelines.

For more information or to request a quote, please visit the CNM VALVE website or contact our sales team directly.

Contact Us

For inquiries or to place an order, please reach out to our team today!

Email: market@valvescenter.com

Phone: +86 138 6861 8624

Website: www.valvescenter.com
