Sleeve type soft sealing plug valve

CNM VALVE's Sleeve Type Soft Sealing Plug Valve is engineered for reliable, leak-tight sealing and smooth operation in various fluid control systems. This valve features a soft sealing mechanism, which is highly effective in preventing leakage, and a sleeve-type design that reduces friction during valve operation, ensuring longer service life and lower maintenance requirements. Its compact design and superior sealing capabilities make it ideal for industries such as chemical processing, oil and gas, and water treatment. The soft sealing plug valve is designed to handle a wide range of fluids, including corrosive media, and offers excellent resistance to wear, ensuring consistent performance in demanding environments.

Size :
Be available in a range of sizes
End Connections :
Flanged, Threaded, Welded
Material :
Stainless Steel, Carbon Steel, Cast Iron, Bronze
Temperature Range :
-20°C to +200°C
Pressure Rating :
ANSI Class 150 to Class 600
Design Standards :
API 6D, API 599, API 602
Suitable Medium :
water, oil, steam, gases, and other compatible fluids
Operation :
Handwheel or Lever

Inquire Now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

Key Features:

High Performance Sealing: The soft sealing sleeve within the plug valve effectively reduces leaks and prevents corrosion, enhancing system reliability.

Durability: Built with premium materials and robust construction, this plug valve is engineered to withstand harsh operating conditions and extended use.

Easy Maintenance: Designed for convenience, CNM's Sleeve Type Soft Sealing Plug Valve can be easily disassembled and serviced without the need for specialized tools.

Versatile Applications: Ideal for use in pipelines and systems where fluid control is critical, this valve offers versatile solutions across numerous industries.

Product Specifications:

Size Range: Available in various sizes to accommodate different pipeline requirements.

Body Material: Options include stainless steel, carbon steel, and other materials as per customer specifications.

Operating Temperature: Suitable for both high and low temperature environments.

Pressure Rating: Engineered to handle medium to high pressure, suitable for demanding applications.

End Connection Types: Flanged, threaded, or welded ends available.

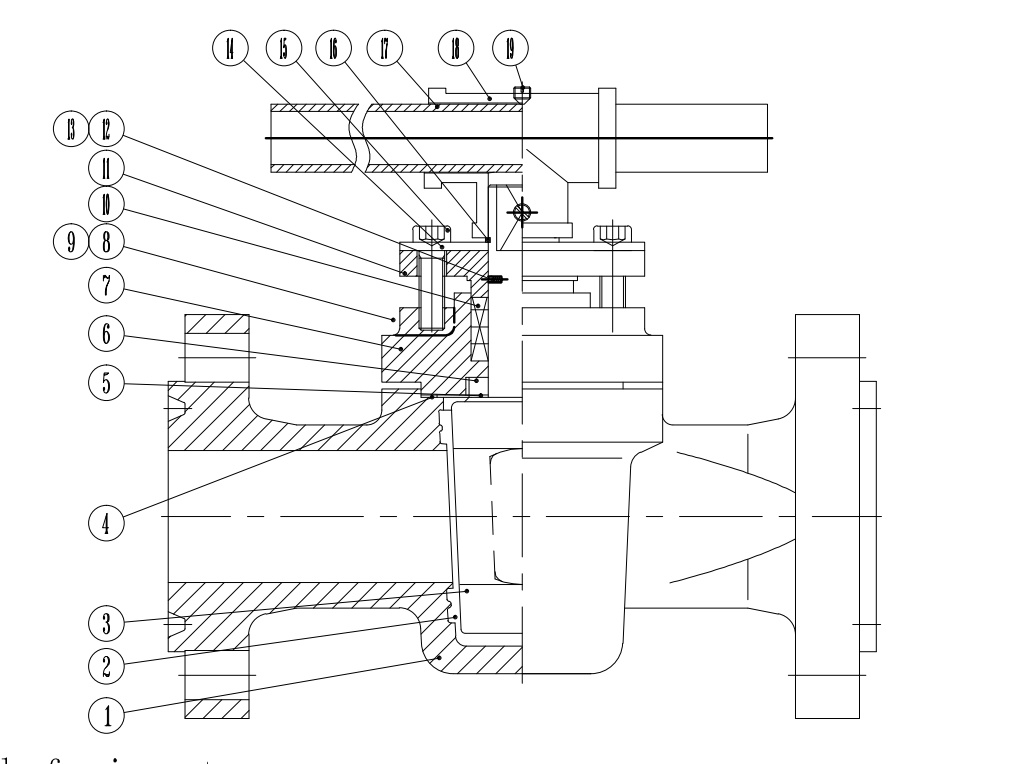

Details:

NO	Part name	Material
1	Body	A216 WCB,A351 CF8/CF8M/CF3/CF3M,904L,CD4MCU、、、
2	Sleeve	PTFE,RPTFE,PPL、、、
3	Plug	A216 WCB,A351 CF8/CF8M/CF3/CF3M,904L,CDMCU、、、
4	Gasket	PTFE, RPTFE,PPL、、、
5	Adjust the pad	SS304/SS316
6	Bonnet	A216 WCB,A351 CF8/CF8M/CF3/CF3M,904L,CD4MCU、、、
7	Bolt	A193 B7/B8/B8M
8	Nut	A194 2H/8/8M
9	Packing	Flexible graphite/PTFE
10	Gland	A216 WCB,A351 CF8/CF8M/CF3/CF3M,904L,CD4MCU、、、
11	Spring	SS304
12	Ball	SS304
13	Locating piece	SS304/CS+Zn
14	Hex screw	A193 B7/B8/B8M
15	circlip	SS304/
16	handle	CS+Zn
17	handle set	CS+Zn
18	Set screw	CS+Zn

Product performance specification:

（LB） Nominal pressure	（Mpa） Shell test pressure	（Mpa） Seal test pressure	（℃） Suitable temperature	Applicable medium
150	3.0	2.2	≤180℃	Water, steam, oil
300	7.5	5.5
600	15.0	11.0
900	22.5	16.5

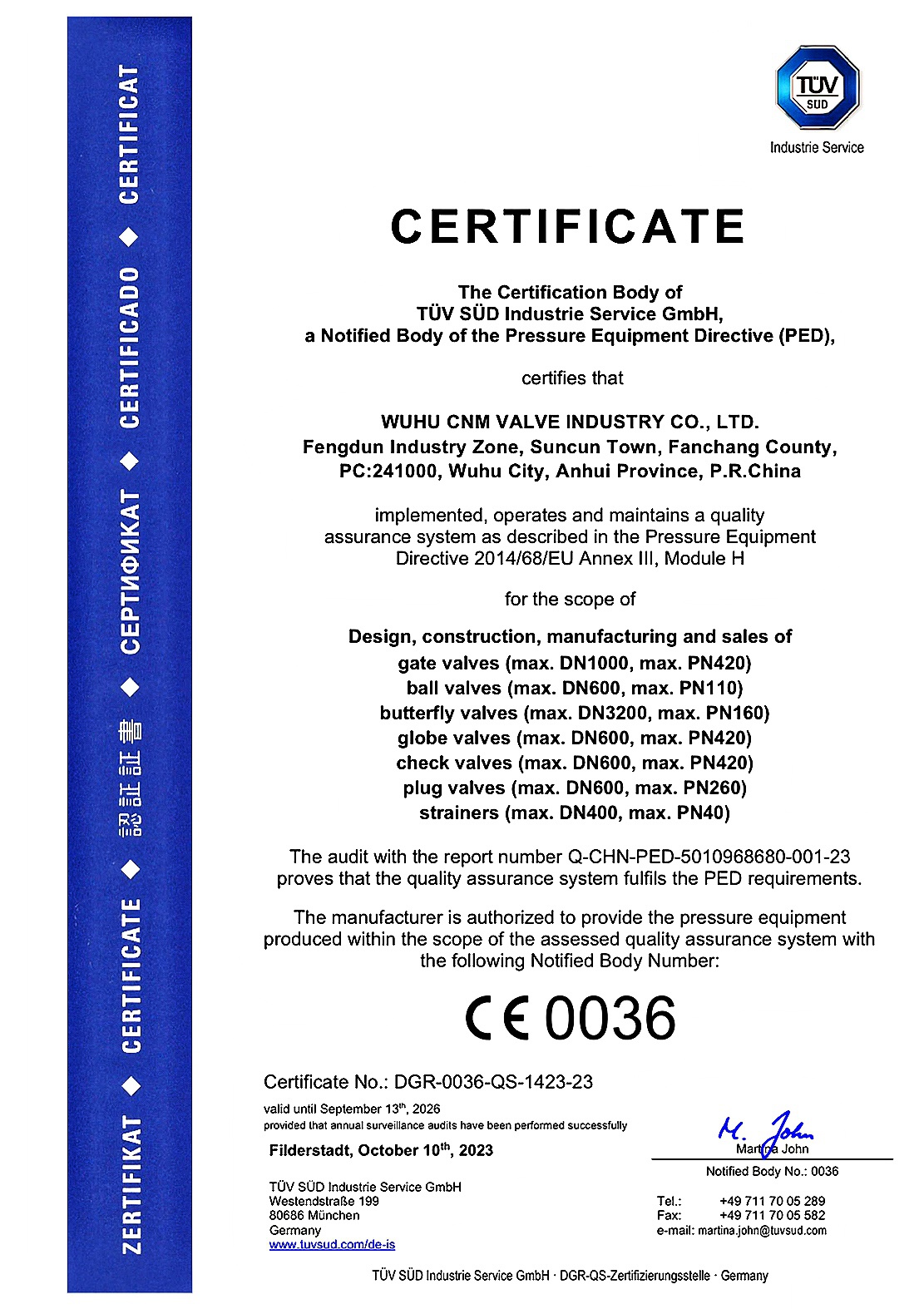

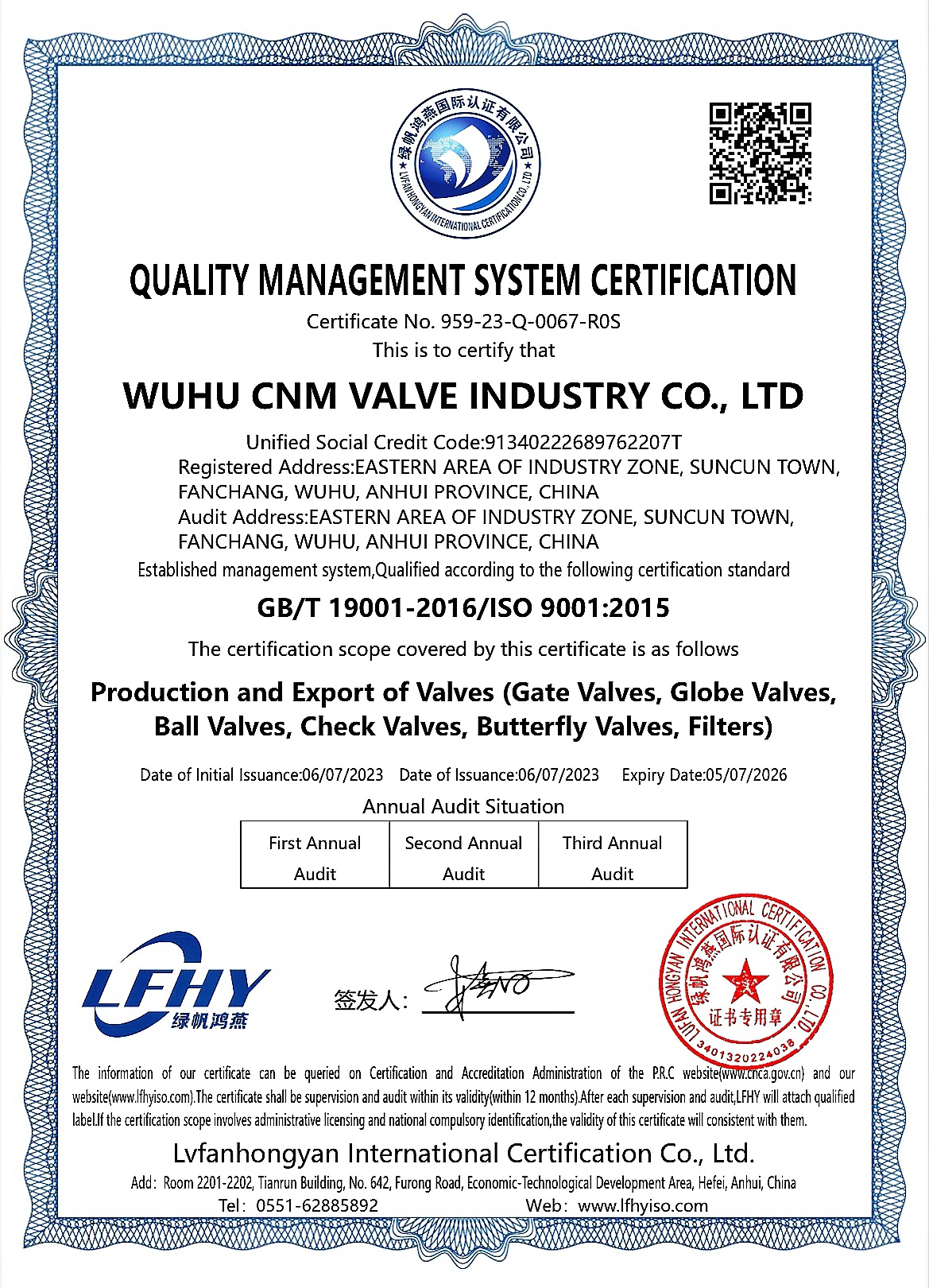

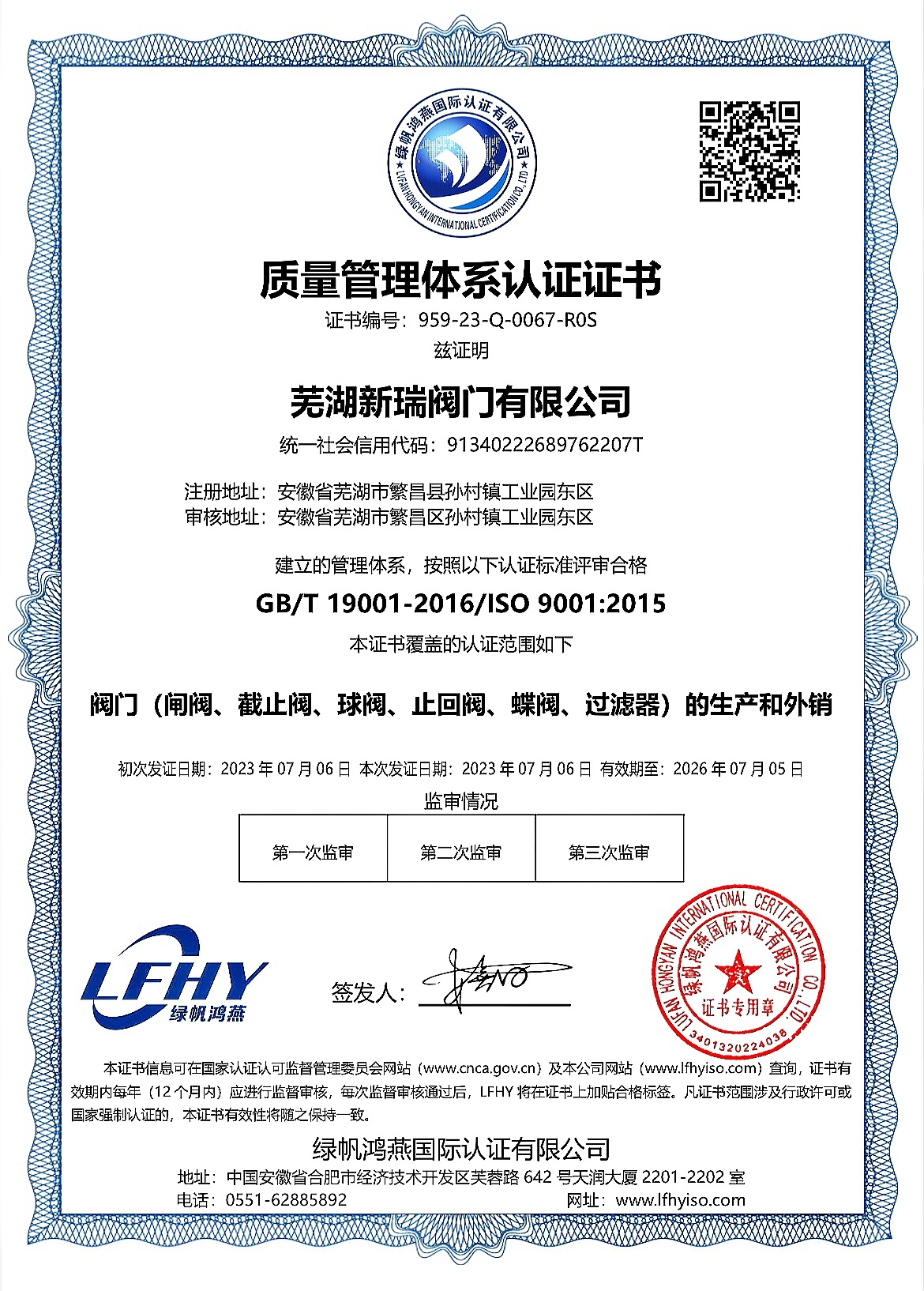

Certificate:

Sleeve type soft sealing plug valve

Why choose CNM VALVE?

CNM has a reputation for excellence in valve manufacturing, delivering solutions that meet international standards for quality and performance. The Sleeve Type Soft Sealing Plug Valve exemplifies CNM’s commitment to innovation, reliability, and customer satisfaction. With advanced engineering and rigorous quality checks, CNM ensures every valve meets the highest standards.

For more information or to request a quote, please visit the CNM VALVE website or contact our sales team directly.
