Post Indicator Gate Valve Asme Class 150

Introducing our remarkable product - the Post Indicator Gate Valve, designed to meet the stringent standards of ASME Class 150. This exceptional valve combines functionality, reliability, and precision, making it an ideal choice for a wide range of industrial applications.

Crafted with meticulous attention to detail, our Post Indicator Gate Valve ensures seamless operation and optimal control over fluid flow. Its robust construction, utilizing only the finest materials, guarantees exceptional durability and longevity, even under the most demanding conditions.

Size :
DN100-DN600
End Connections :
FLANGE
Material :
carbon steel,chrome molybdenum steel,stainless steel
Temperature Range :
-29~650℃
Pressure Rating :
Class150~2500
Suitable Medium :
petroleum, chemical,water

Inquire Now

categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Description

American Standard cast steel post indicator gate valve is suitable for ANSI Class150～2500, working temperature -59～425℃ (carbon steel), -29～650℃ (chrome molybdenum steel) and -40～500℃ (stainless steel) of the famous kind of pipeline. Product design and manufacture in line with foreign advanced standards, reliable sealing, excellent performance. Compact and reasonable structural design, beautiful modelling. Valve body material varieties, packing, gasket according to the actual working conditions or user requirements for reasonable selection, can be applied to a variety of pressures, temperatures and media conditions. Widely used in petroleum, chemical, food, water, sewage, construction, medicine, textile, electric power, shipping, metallurgy, energy systems and other liquid pipeline as a cut-off device.

Product Overview:

Post Indicator Gate Valve ASME Class 150 is designed for precise flow control and shut-off in fire protection systems, as well as various industrial applications. Equipped with a post indicator for remote valve position visibility, this gate valve ensures easy operation and monitoring, making it ideal for fire safety installations where the open or closed position must be easily identified from a distance.Compliant with ASME Class 150 standards, this gate valve is constructed from high-quality materials, offering durability, reliability, and long-term performance in a wide range of operating environments.

Key Features:

Post Indicator for Remote Monitoring:

The valve comes with a post indicator system that allows operators to easily determine whether the valve is open or closed, an essential feature for fire protection and safety systems.

Long-lasting Durability:

Manufactured from high-grade materials, the valve is designed to withstand harsh environmental conditions and heavy-duty industrial use.

Details:

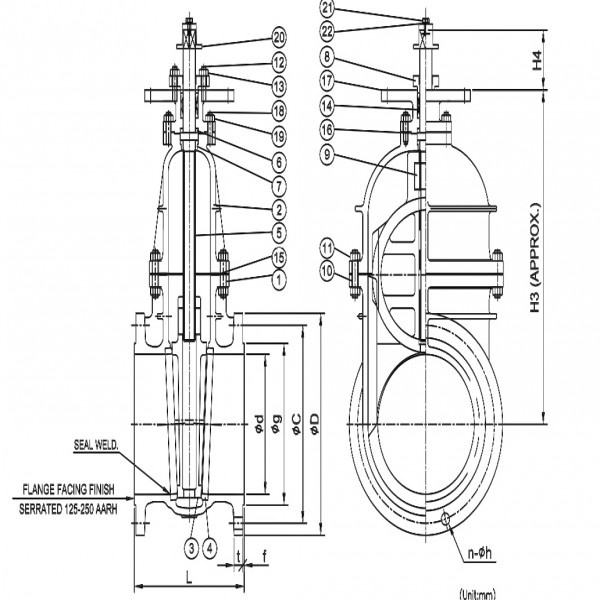

Post Indicator Gate Valve Asme Class 150

SIZE		φd	L	mg	φC	φD	t	f	H3	H4	n-φh	REF. WEIGHT (kg)
DN	NPS	φd	L	mg	φC	φD	t	f	H3	H4	n-φh	REF. WEIGHT (kg)
100	4	102	229	157.2	190.5	229	22.4	1.5	420	120	8-19.1	40
125	5	127	254	185.7	215.9	254	22.4	1.5	480	120	8-22.2	60
150	6	153	267	215.9	241.3	279	23.9	1.5	525	120	8-22.2	80
200	8	204	292	269.7	298.4	343	26.9	1.5	620	120	8-22.2	130
250	10	254	330	323.8	362.0	406	28.4	1.5	700	120	12-25.4	180
300	12	305	356	381.0	431.8	483	30.2	1.5	800	120	12-25.4	280
350	14	337	381	412.8	476.2	533	33.3	1.5	875	120	12-28.6	380
400	16	388	406	469.9	539.8	597	35.1	1.5	970	120	16-28.6	490
450	18	439	432	533.4	577.8	635	38.1	1.5	1070	120	16-31.8	630
500	20	489	457	584.2	635.0	698	41.1	1.5	1160	120	20-31.8	780
600	24	591	508	692.2	749.3	813	46.0	1.5	1350	120	20-34.9	1200

Certificate:

Post Indicator Gate Valve Asme Class 150

Why choose CNM VALVE?

At CNM VALVE, we are dedicated to providing high-quality, reliable solutions for industrial and fire protection systems. Our Post Indicator Gate Valve ASME Class 150 is engineered for performance, safety, and durability, making it the trusted choice for your critical operations.

CNM VALVE offers fast delivery and customization services to meet specific project requirements and timelines.

For more information or to request a quote, please visit the CNM VALVE website or contact our sales team directly.

Contact Us

For inquiries or to place an order, please reach out to our team today!

Email: market@valvescenter.com

Phone: +86 138 6861 8624

Website: www.valvescenter.com

Hot Tags : Durable Post indicator gate valve Efficient ASME Class 150 Valves Corrosion-resistant Fire Protection Valve High-Quality Manual Valve Pressure Rating 150 PSI Valves Leak-proof gate valve
