The JIS/KS Stainless Steel Gate Valve, manufactured by CNM Valve, is designed to provide reliable and long-lasting performance in various industrial applications. Whether for oil and gas, water treatment, or chemical processing, this gate valve offers exceptional control and durability under demanding conditions. Its superior construction ensures smooth operation, excellent flow control, and high resistance to corrosion and wear.

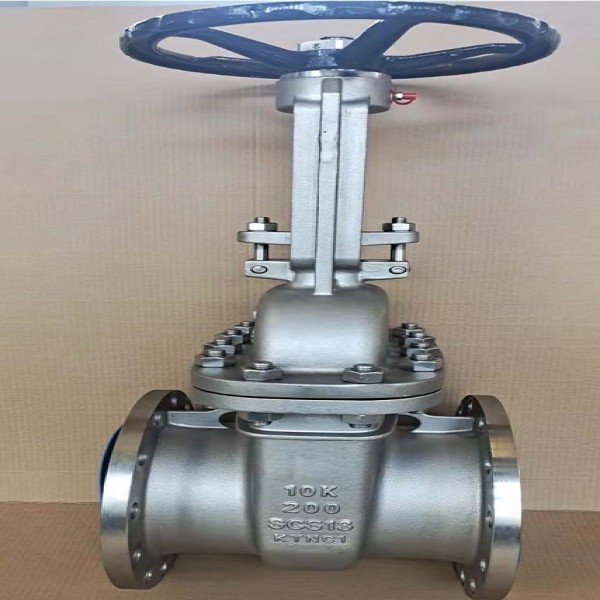

The JIS/KS Stainless Steel Gate Valve from CNM VALVE is a robust and highly durable valve designed to provide reliable isolation of fluid flow in a wide range of industrial applications. Engineered with precision, this valve is constructed from high-quality stainless steel, ensuring excellent resistance to corrosion, making it ideal for demanding environments. The gate valve’s design allows for full, unobstructed flow when fully open, and a tight, secure seal when closed, contributing to its efficiency and longevity in high-performance systems.Fully compliant with Japanese Industrial Standards (JIS) and Korean Standards (KS), this gate valve is suitable for global use in various industries, ensuring compatibility and reliability in both new and existing pipeline systems.
Size :
DN50A to DN600AEnd Connections :
Flanged ends (JIS 10K, KS 10K)Material :
Stainless Steel/SCS13Temperature Range :
-20°C to 200°CPressure Rating :
10K to 20KDesign Standards :
JIS B2031, KS B2331Suitable Medium :
Oil，Gas，WaterOperation :
OPERATED BY HANDWHEEL,GEARAdvantages：
Precision Engineering: Ensures flawless operation and optimal flow control.
Corrosion Resistance: Stainless steel body prolongs valve life in corrosive environments.
Cost-Effective: Minimizes maintenance and replacement costs.
Trusted Manufacturer: CNM Valve is a well-established name known for producing high-quality valves that meet international standards.
Applications：
Oil & Gas Industry
Water Treatment Plants
Chemical Processing
Power Generation
Industrial Pipelines
Features:
1. Soft seal, gate plastic bag, corrosion resistance;
2. Not easy to break, long service life;
3. Suitable for fluid pipelines such as tap water, sewage, construction, electricity, medicine, metallurgy, textile, energy systems, etc.
4. The fluid resistance is small, the medium flowing through the gate valve does not change the flow direction, so the fluid resistance is small. The company is located at:
5. The opening and closing torque is small, and the opening and closing is more labor-saving, because the opening and closing flow of the gate valve and the flow direction of the medium are perpendicular to the valve. Compared with the globe valve, the opening and closing of the gate valve is more labor-saving.
6. The flow direction of the medium is not limited, no spoiler, no decompression, the medium can flow from any side of the gate valve to any direction
7. The length of the structure is short, because the gate of the gate valve is placed vertically in the valve body, and the globe valve disc is placed horizontally in the valve body, so the structure length is shorter than that of the globe valve.
8. The sealing performance is good, and the sealing surface is less eroded when fully opened.
9. Fully open, the sealing surface is less eroded by the working medium than the globe valve. The company is located at:
10. The shape is simple, the casting process is better, and the application range is wide.

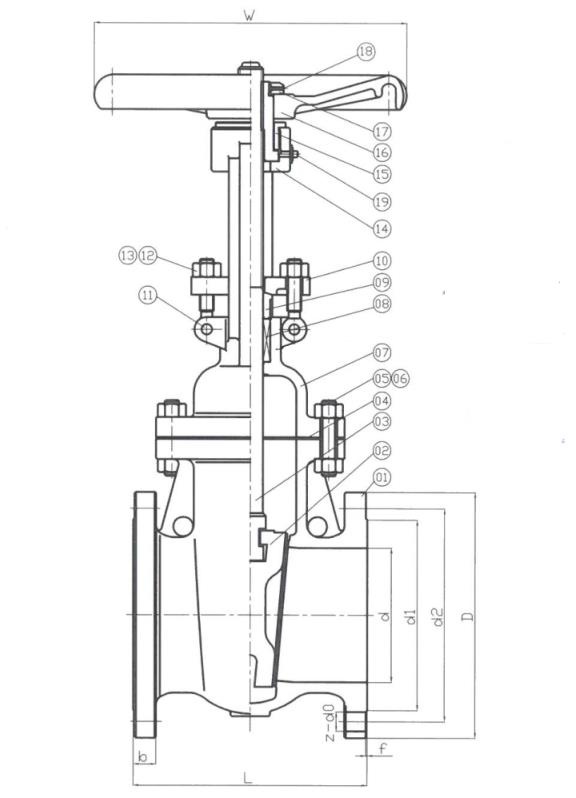

| 10K Dimension - Unit: mm | ||||||||||
| DN | d | L | H | W | D | D1 | D2 | b | F | z-Φd |
| 50A | 50 | 178 | 360 | 200 | 155 | 120 | 96 | 16 | 2 | 4-19 |
| 65A | 65 | 191 | 395 | 200 | 175 | 140 | 116 | 18 | 2 | 4-19 |
| 80A | 80 | 203 | 435 | 250 | 185 | 150 | 126 | 18 | 2 | 8-19 |
| 100A | 100 | 229 | 522 | 280 | 210 | 175 | 151 | 18 | 2 | 8-19 |
| 125A | 125 | 254 | 570 | 280 | 250 | 210 | 182 | 20 | 2 | 8-23 |
| 150A | 150 | 267 | 610 | 300 | 280 | 240 | 212 | 22 | 2 | 8-23 |
| 200A | 200 | 292 | 740 | 350 | 330 | 290 | 262 | 22 | 2 | 12-23 |
| 250A | 250 | 330 | 935 | 400 | 400 | 355 | 324 | 24 | 2 | 12-25 |
| 300A | 300 | 356 | 1065 | 450 | 445 | 400 | 368 | 24 | 3 | 16-25 |
| 350A | 350 | 381 | 1430 | 500 | 490 | 445 | 413 | 26 | 3 | 16-25 |
| 400A | 400 | 406 | 1625 | 560 | 560 | 510 | 475 | 28 | 3 | 16-27 |
| 500A | 500 | 457 | 1930 | 630 | 675 | 620 | 585 | 30 | 3 | 20-27 |
Certificate:
Why choose CNM VALVE?
With decades of experience in manufacturing industrial valves, CNM VALVE is dedicated to delivering high-quality, reliable solutions for flow control. Our JIS/KS Stainless Steel Gate Valve combines durability, precision, and performance, making it the ideal choice for a wide range of demanding industrial applications.
CNM VALVE offers fast delivery and customization services to meet specific project requirements and timelines.
For more information or to request a quote, please visit the CNM VALVE website or contact our sales team directly.
For inquiries or to place an order, please reach out to our team today!
