High performance Pressure Relief Valve for steam service

Key Features：

Superior Pressure Control: Engineered for accuracy, this valve efficiently manages high-pressure levels, maintaining optimal safety and performance in steam systems.

High-Quality Materials: Built from corrosion-resistant stainless steel and other premium-grade materials to withstand extreme temperatures and pressure conditions.

Advanced Sealing Technology: Featuring an enhanced sealing mechanism that minimizes leakage and enhances longevity, reducing maintenance needs and downtime.

Precision Engineering: Designed for seamless integration and ease of installation, with precise calibration options for customizable pressure settings.

Safety Compliance: Meets industry standards and safety regulations, making it a reliable choice for demanding environments.

Applications：

Ideal for industries and systems that require robust, high-performance steam pressure relief solutions, including:

Industrial boilers

Power generation facilities

Chemical processing plants

Pulp and paper mills

HVAC systems with high steam pressures

High Performance Steam Boiler Relief Valve meets the requirements of ASME Boiler and Pressure

• Vessel Code Section I , Power Boilers .

• Set pressure tolerance ΔPs≤±1% Ps (Ps>6.89 MPa)

• Overpressure ΔPo≤ 3% Ps

• Blowdown ΔPb1≤ 4% Ps

Application of Steam Boiler Pressure Relief Valve:

High Performance Pressure Relief Valves for Steam Service is serviced for over pressure protection of power boiler ,once-through boiler, reheater and other pressure vessel and pipe.

Features of Steam Boiler Relief Valve:

• The back pressure adjusting system utilizes the flowing steam to build and adjust back pressure to ensure that blow down is not more than 4% of set pressure.

• Nozzle is welded with body to make connection stable when it's serviced in the condition of high temperature and high pressure.

• Connection of inlet and outletis flange type to make ins-tallation and maintenance easy.

• Perfect guide design provides well alignment to ensure that the operation of valve is agile and stable.

• The selected materials are of high performance which can be used in high temperature condition.

• The nozzle and disc is faced with and lapped precisely.

• Spring is produced through excellent technology and tested under simulative service condition.

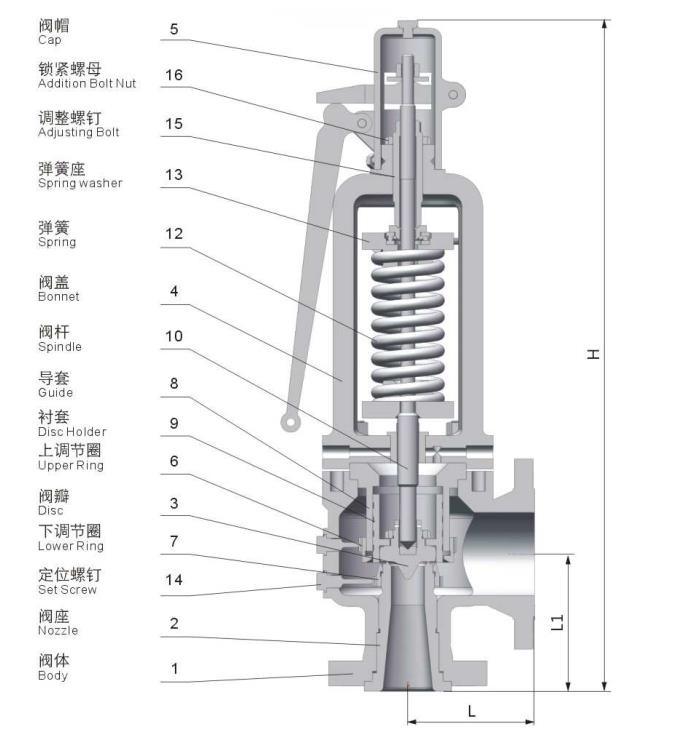

Details:

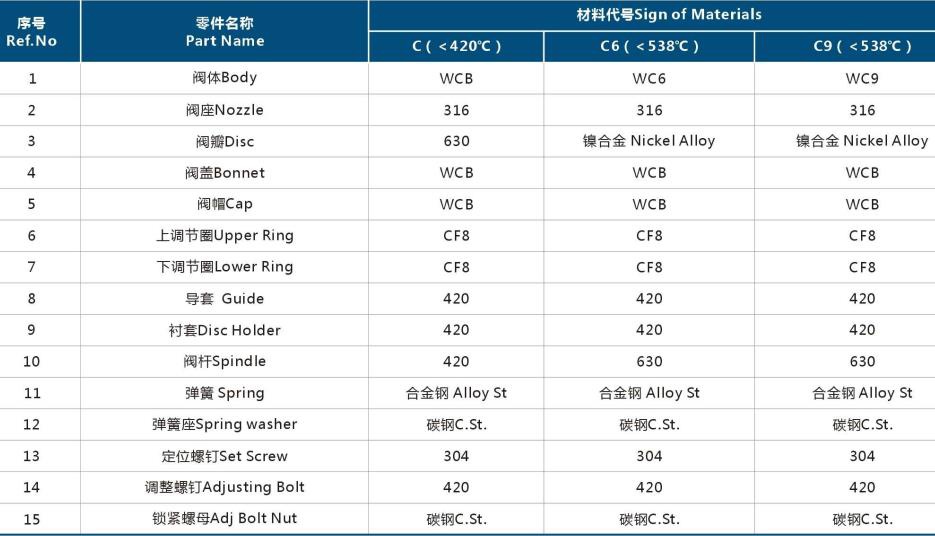

Specification:

Certifications:

1. ISO CNM Q202006

2. GB/T24001-2016/IS014001:2015 Certificate

3. GB/T45001-2020/IS045001:2018 Certificate

Why choose CNM VALVE?

With years of expertise in valve technology, CNM Valve is dedicated to providing reliable and high-quality solutions for various industries. We pride ourselves on delivering valves that exceed safety standards and meet the unique requirements of our clients worldwide.

For more information or to request a quote, please visit the CNM VALVE website or contact our sales team directly.
