Flow Control Valve

The hydraulically flow control valve is a valve that adjusts the flow by changing the liquid resistance by changing the size of the valve port.

Key Features

1. High Precision Flow Control:

The CNM Flow Control Valve is built to provide precise control over fluid flow, ensuring stability and efficiency in your system. This guarantees accurate flow rates even under varying pressure conditions.

2. Durable Construction:

Constructed with high-quality materials, our valves are corrosion-resistant and designed for long-lasting performance. The valve’s robust design ensures durability in even the harshest environments.

3. Easy Maintenance:

The CNM valve features a user-friendly design that simplifies maintenance, reducing downtime and ensuring smooth operation. Its modular design allows for easy access to internal components, making repairs quick and efficient.

4. Versatile Applications:

This valve is suitable for a wide range of applications, including fluid handling, gas regulation, and chemical processing. It can be tailored to meet the specific requirements of various industries.

5. Energy-Efficient:

With optimized flow paths, the CNM Flow Control Valve reduces energy loss, leading to significant savings on operational costs. Its innovative design promotes energy efficiency while maintaining high performance.

Features:

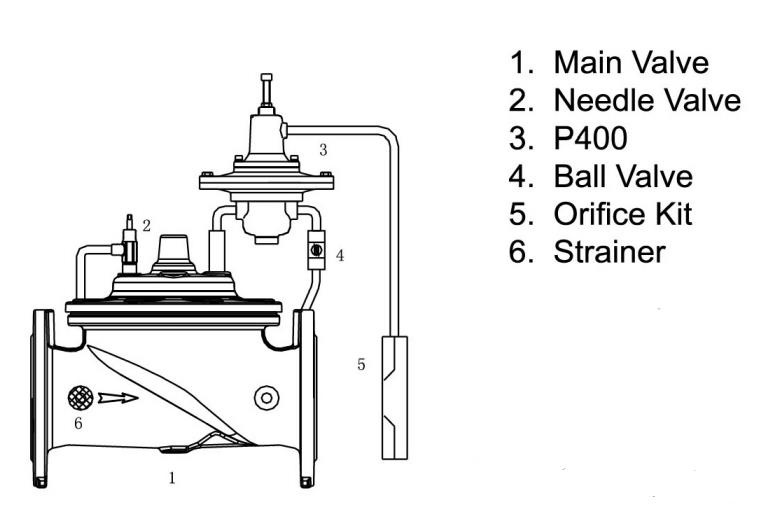

Flow Control Valve prevents excessive flow by limiting flow to a preselected maximum rate, regardless of changing line pressure. It is a hydraulically operated, pilot controlled, diaphragm valve.

The pilot control responds to the differential pressure produced across an orifice plate installed downstream of the valve. Accurate control is assured as very small changes in the controlling differential pressure produce immediate corrective action of the main valve. Flow rate adjustments are made by turning an adjusting screw on the pilot control. The hydraulically flow control valve includes an orifice plate with a holder that should be installed one to five pipe diameters downstream of the Valve.

To guarantee accurate control of flow rate, there are several orifice plate with different hole optional for each size, see the additional table for selection of orifice.

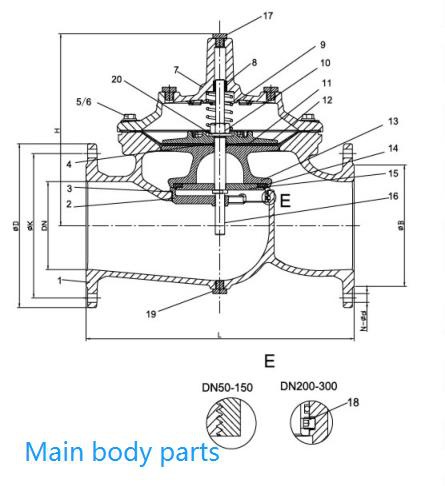

Product Images and Diagram

Below is a detailed representation of our Flow Control Valve:

Applications:

Oil & Gas Industry:Reliable flow control in upstream, midstream, and downstream operations.

Water Treatment:Ensures accurate water flow for treatment plants and desalination facilities.

Chemical Processing:Precise control of chemicals and liquids in complex manufacturing systems.

HVAC Systems:Energy-efficient flow regulation for heating, ventilation, and air conditioning.

Certificate:

Why Choose CNM Valves?

At CNM, we pride ourselves on delivering top-quality flow control solutions that are tailored to your industry’s unique demands. Our valves are engineered to deliver unmatched performance, safety, and efficiency. When you choose a Flow Control Valve manufactured by CNM, you're selecting a product backed by years of expertise, innovation, and a commitment to excellence.If you’re looking for a reliable, durable, and precise Flow Control Valve, CNM has the solution for you. Contact us today for more information or to request a quote.

Contact Us

For inquiries or to place an order, please reach out to our team today!
