A cast iron duo plate check valve is a type of check valve used in piping systems to prevent backflow of fluids. It is called a "duo plate" check valve because it has two half-discs, or plates, that swing on a hinge to open and close the valve.The two plates are shaped like semicircles and are mounted on a hinge in the center of the valve body. When the fluid flows in the forward direction, the plates are pushed open, allowing the fluid to pass through the valve. However, when the fluid flows in the reverse direction, the plates swing shut, preventing the backflow of fluid.
The duo plate design provides a number of advantages over other types of check valves. For example, it is more compact and lightweight, making it ideal for use in space-constrained installations. Additionally, the swinging plates produce less turbulence and pressure drop compared to other designs, which can reduce energy costs and extend the life of the valve.Cast iron is a popular material choice for duo plate check valves due to its strength, durability, and corrosion resistance. Cast iron duo plate check valves are commonly used in water distribution, sewage treatment, chemical processing, and power generation applications.
Size :
2" to 20"End Connections :
WaferMaterial :
High-quality Cast IronTemperature Range :
-30°C to +180°CPressure Rating :
PN10/PN16/PN25Suitable Medium :
Water, steam, HVAC, oil, gasKey Features:
Durable Cast Iron Construction: Made from robust cast iron to ensure longevity and reliability, even in challenging environments.
Efficient Duo Plate Design: The unique dual-plate structure allows for reduced head loss and faster closure, minimizing the risk of water hammer and reducing overall system wear.
Non-Slam Operation: Our Duo Plate Check Valve is built with a spring-loaded mechanism for non-slam operation, ensuring smooth and silent performance.
Corrosion Resistance: Special coating options and anti-corrosion materials protect the valve from harsh elements, enhancing service life.
Easy Maintenance: Designed with simplicity in mind, this valve can be easily maintained, reducing downtime and costs.
Applications:
The CNM Cast Iron Duo Plate Check Valve is ideal for industries that require reliable backflow prevention, including:
Water Supply and Distribution
Wastewater Treatment Plants
Oil & Gas Processing
HVAC Systems
Industrial Fluid Processing

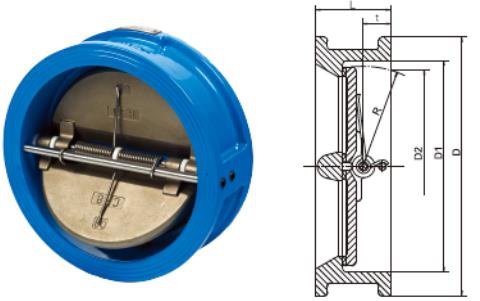

Structure of Cast Iron Duo Plate Check Valve:
DIMENSIONS of Cast Iron Duo Plate Check Valve：
Certificate:
Why Choose CNM Valve?
As a leading manufacturer, CNM Valve is committed to delivering top-quality industrial valve solutions that meet global standards. Our Cast Iron Duo Plate Check Valve is engineered with precision and built for performance, ensuring optimal flow control in critical operations.
For more information on the Cast Iron Duo Plate Check Valve, contact us today or request a quote through our website. Experience the reliability of CNM valves in your industrial systems!
For inquiries or to place an order, please reach out to our team today!
